KIT RF TRANSFORMER is intended for input, interstage impedance matching applications.
Note this is not the finished transformer. This is a KIT for the manufacture of the transformer.

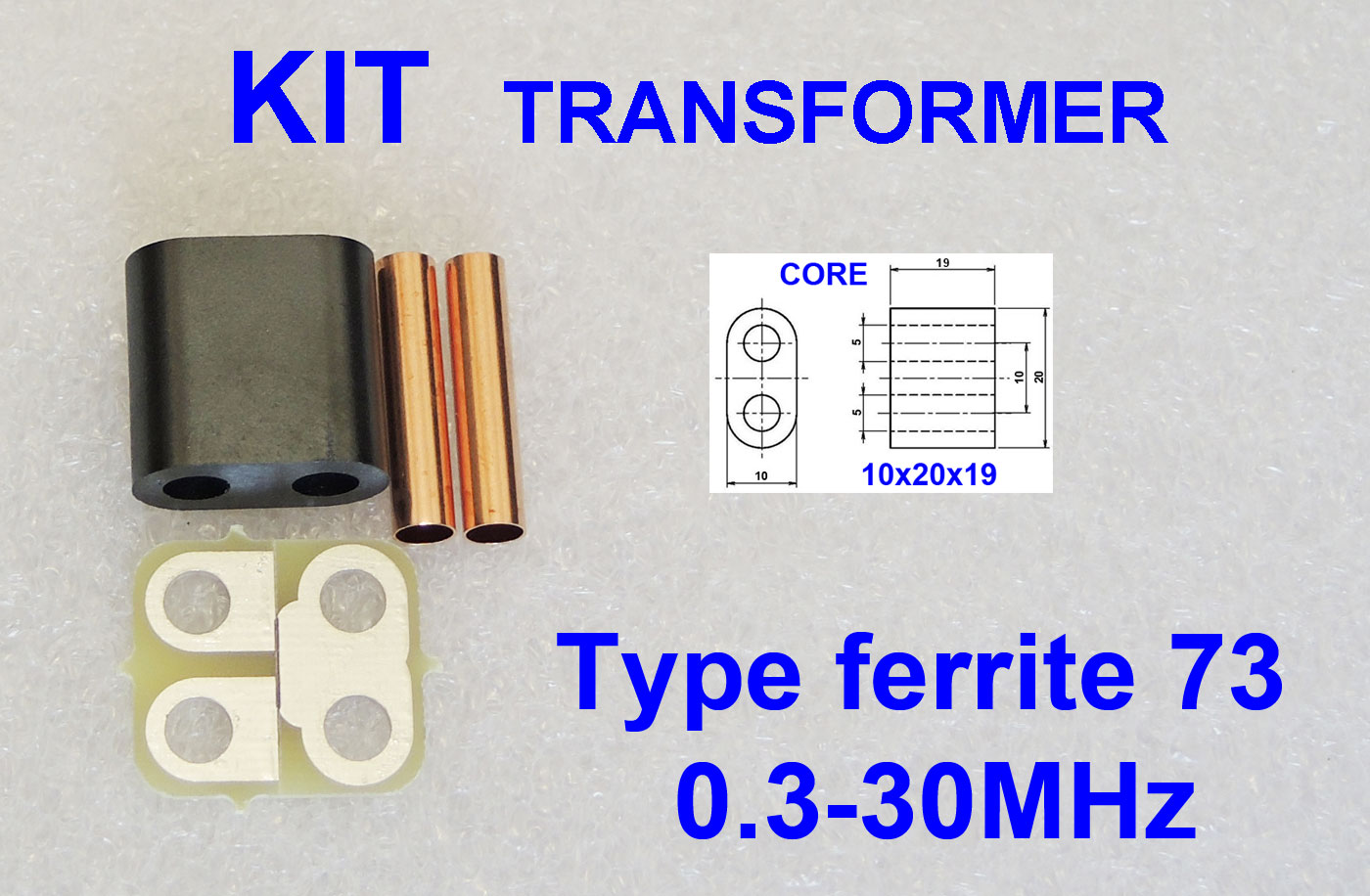

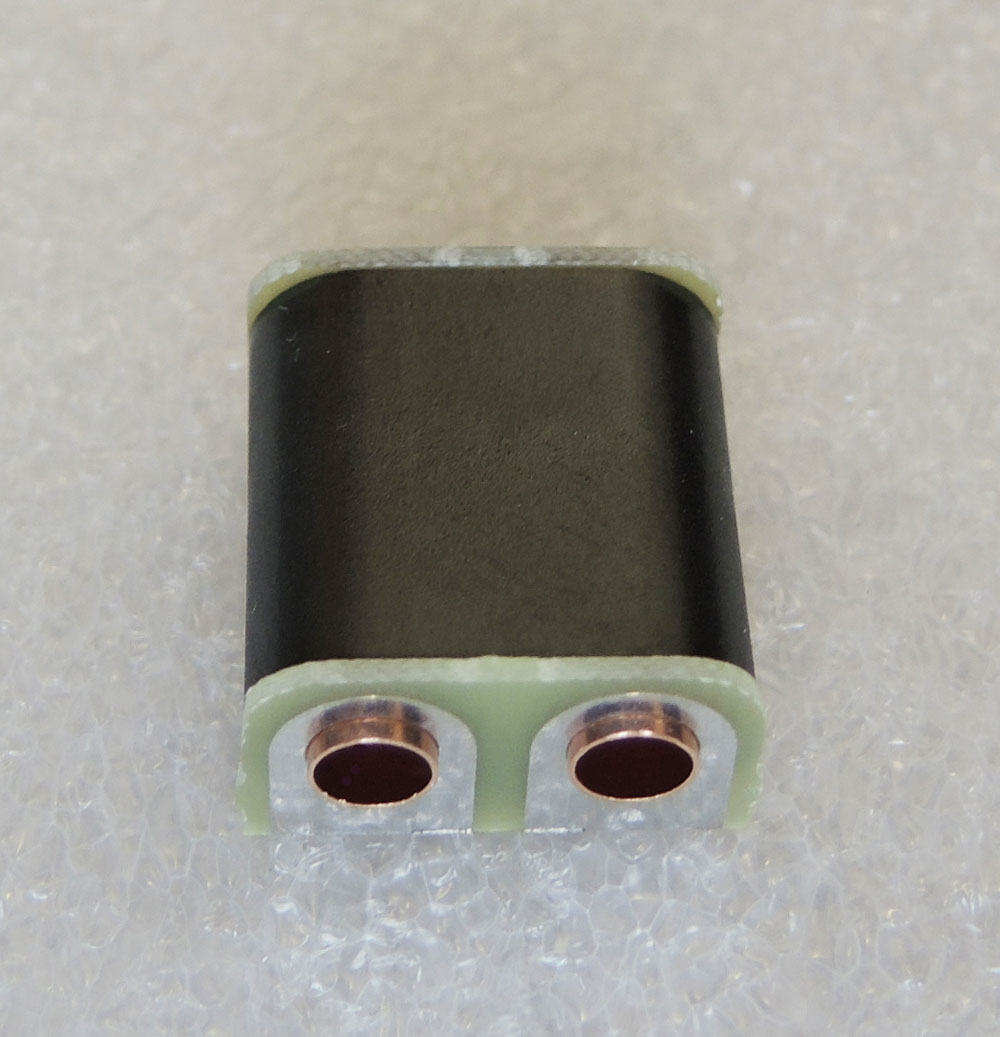

This KIT as you can see on the first photo. Wire not included.
Primarily in for solid-state, push-pull amplifiers.
The RF transformer can handle a maximum power dissipation of 80 watts PEP.
Designed for PA with 2x RD16HHF1, 2x IRF510, 2x SC1969, and so on
For example - for such a module -
The core material for the RF transformer is available type 73.
TYPE 73 0.3-30MHz frequency range.
Attention, all detailed descriptions are given on the page => Description
