KIT RF T-in TRANSFORMER is intended for input, interstage impedance matching applications.
Note this is not the finished transformer. This is a KIT for the manufacture of the transformer.

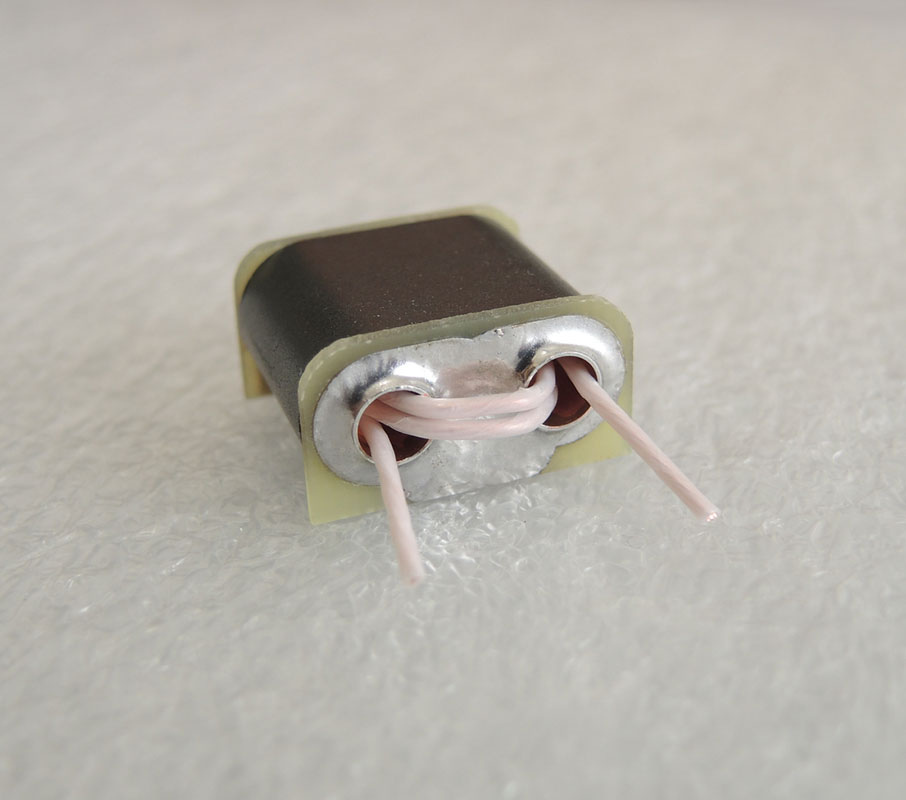

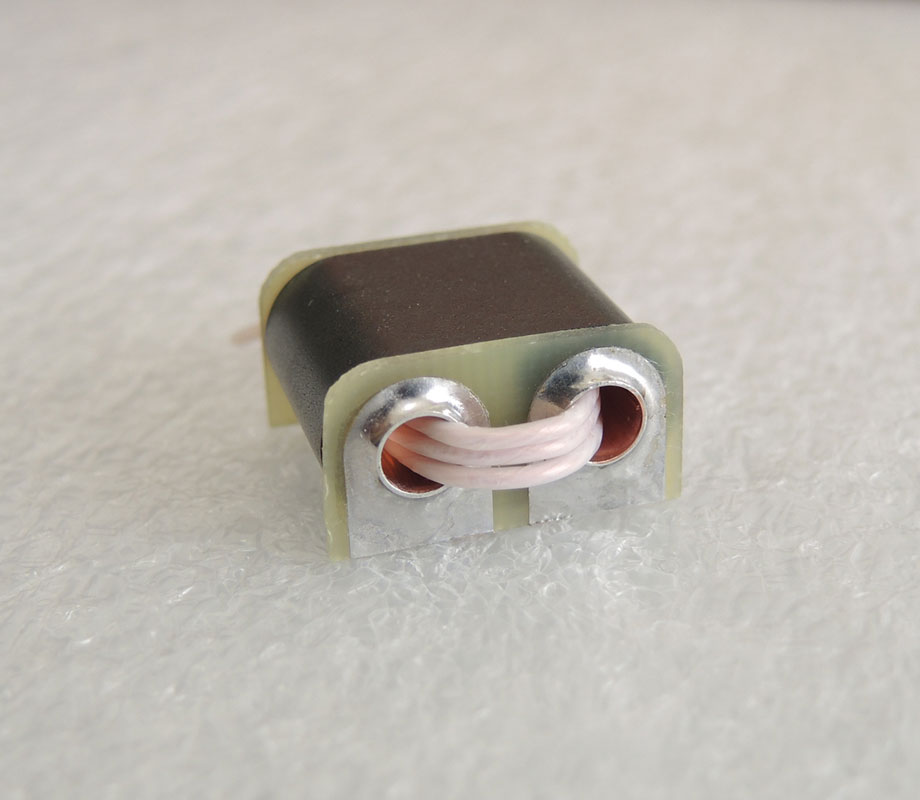

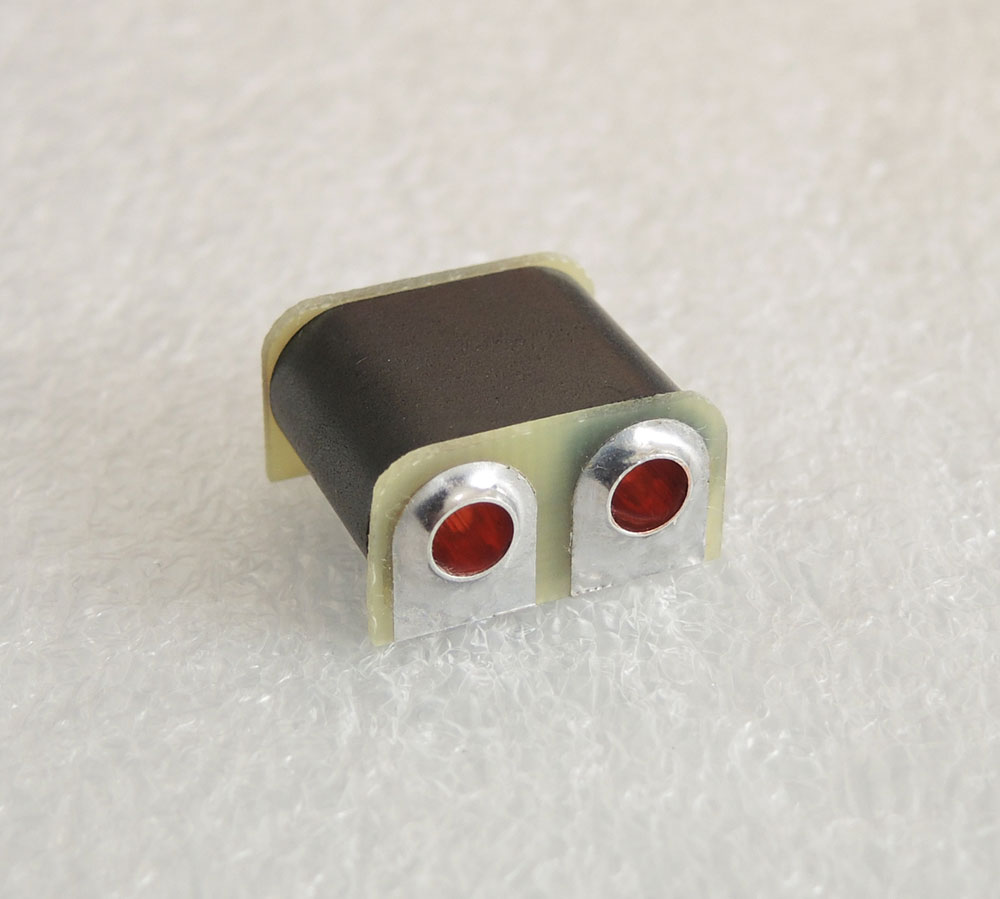

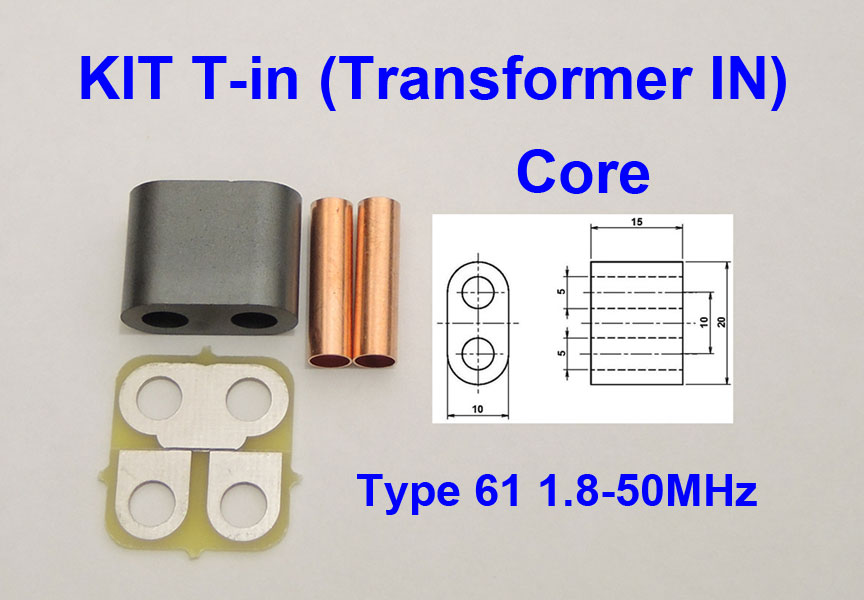

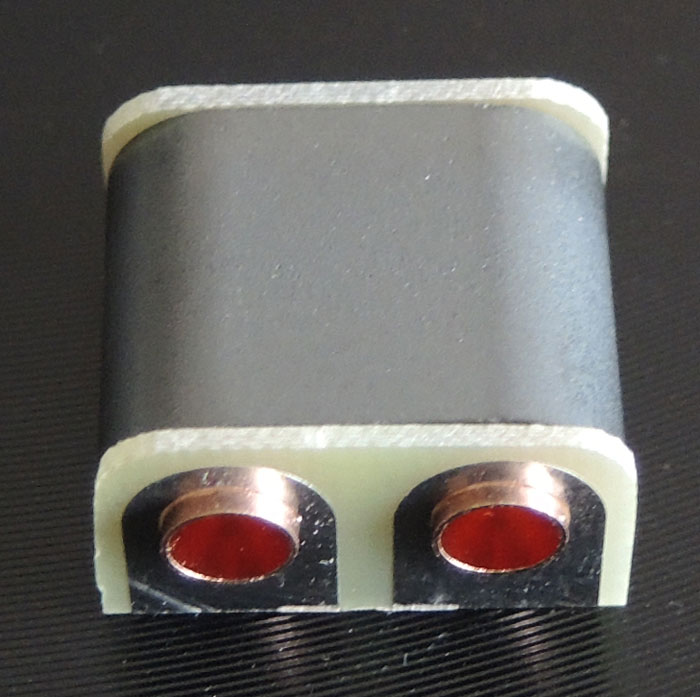

This KIT as you can see on the first photo. Wire not included.
Primarily in for solid-state, push-pull amplifiers.
The RF T-in transformer can handle a maximum power dissipation of 50 watts PEP.
Designed for PA with MOSFET, LDMOS - MRF150, SD2933, VRF2933, BLF188, BLF578, MRF6VP11KH, MRFE6VP61K25HR6...
The core material for the RF T-in transformer is available type 61.
TYPE 61 2-100MHz frequency range.
Attention, all detailed descriptions are given on the page => Description
