RF1200L Transformer

20.00 $

Description:

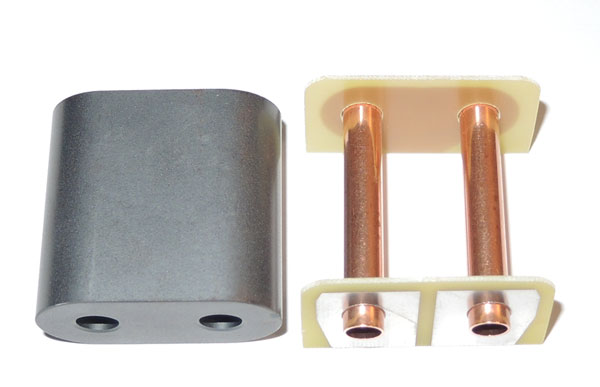

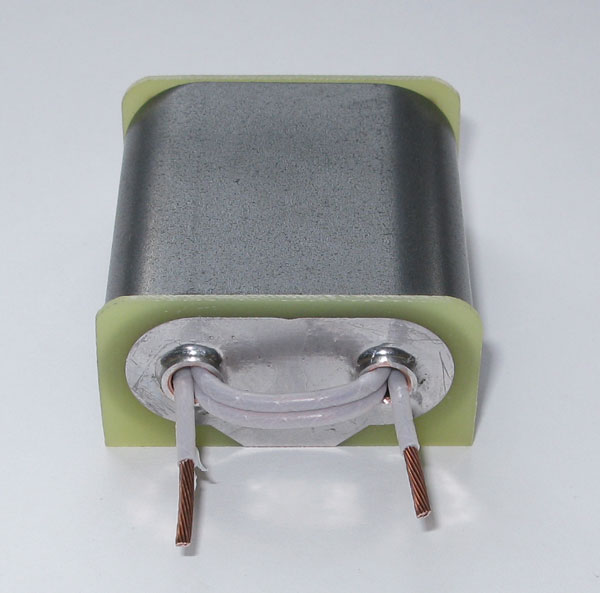

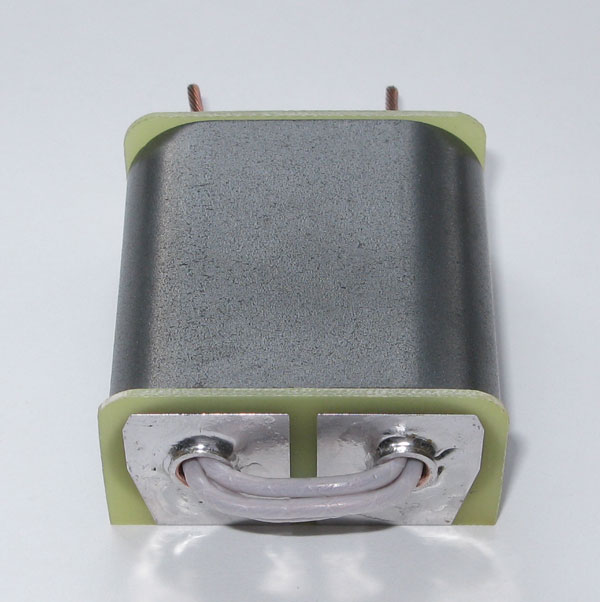

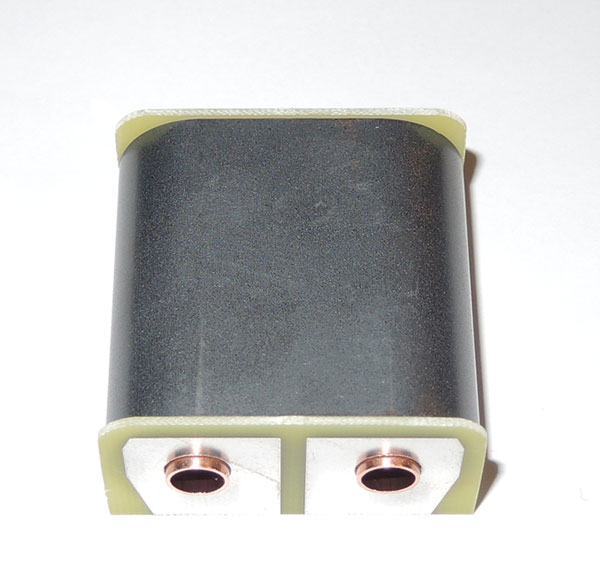

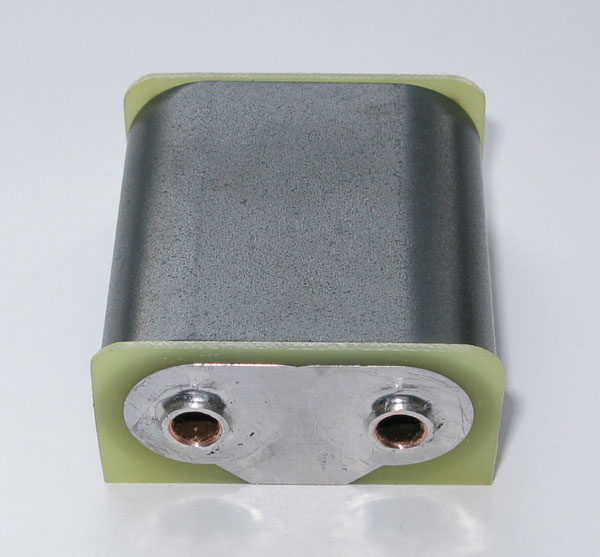

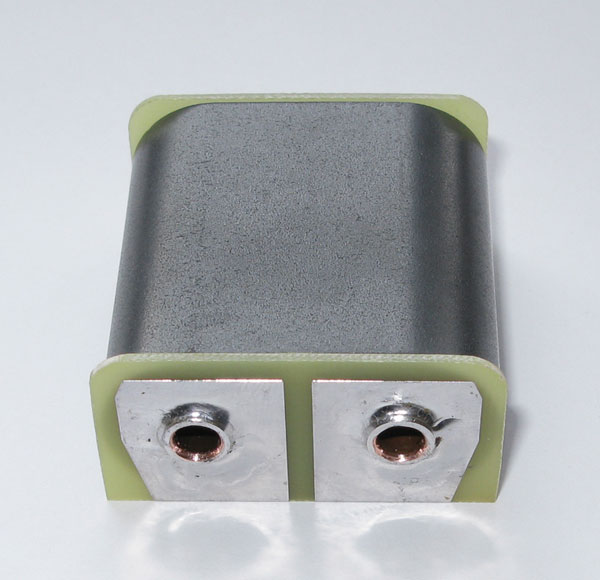

KIT RF1200L TRANSFORMER is intended for output, interstage impedance matching applications.

Note this is not the finished transformer. This is a KIT for the manufacture of the transformer.

Primarily in for solid-state, push-pull amplifiers.
The RF1200 transformer can handle a maximum power dissipation of 1200 watts PEP.

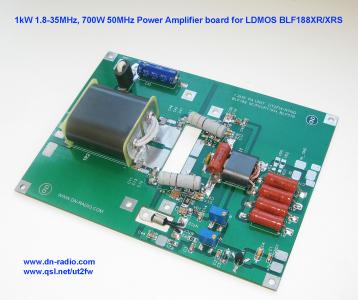

Designed for PA with LDMOS - BLF188, BLF578, MRF6VP11KH, MRFE6VP61K25HR6.

For example - for such a module -

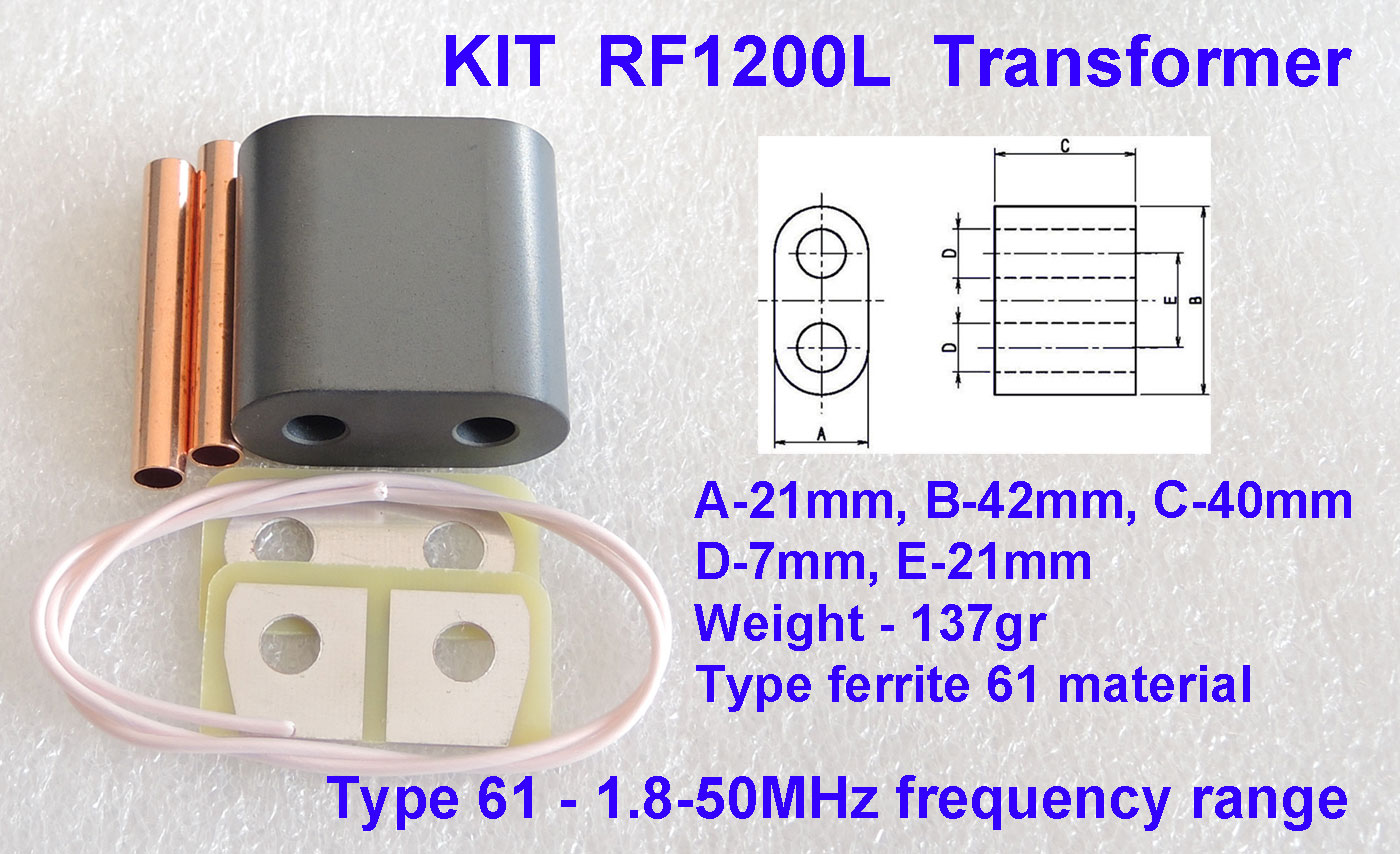

The core material for the RF1200 transformer is available type 61.
TYPE 61  1.8-50MHz frequency range.

Attention, all detailed descriptions are given on the page => Description
