55.00 $
Description:
KIT AMPLIFIER 35Watt (50W PEP) FOR SSB/CW/AM/FM
1-30MHz Upper frequency can be increased by changing the parameters C35, C36, C37, C38, C22, C21, C20, L1, L2.
Among the photos you can see the amplifier option LPF for 50MHz BAND. For PA 100MHz elements C35,36,37,38,22,21,20 L1,2 are not used.
INPUT +21dBm (2,5V) AND OUTPUT 35WATT (50W PEP) POWER SUPPLY 13,8 volt DC / 6 A
If set then enough VT1 +1dBm (250mV) input power.

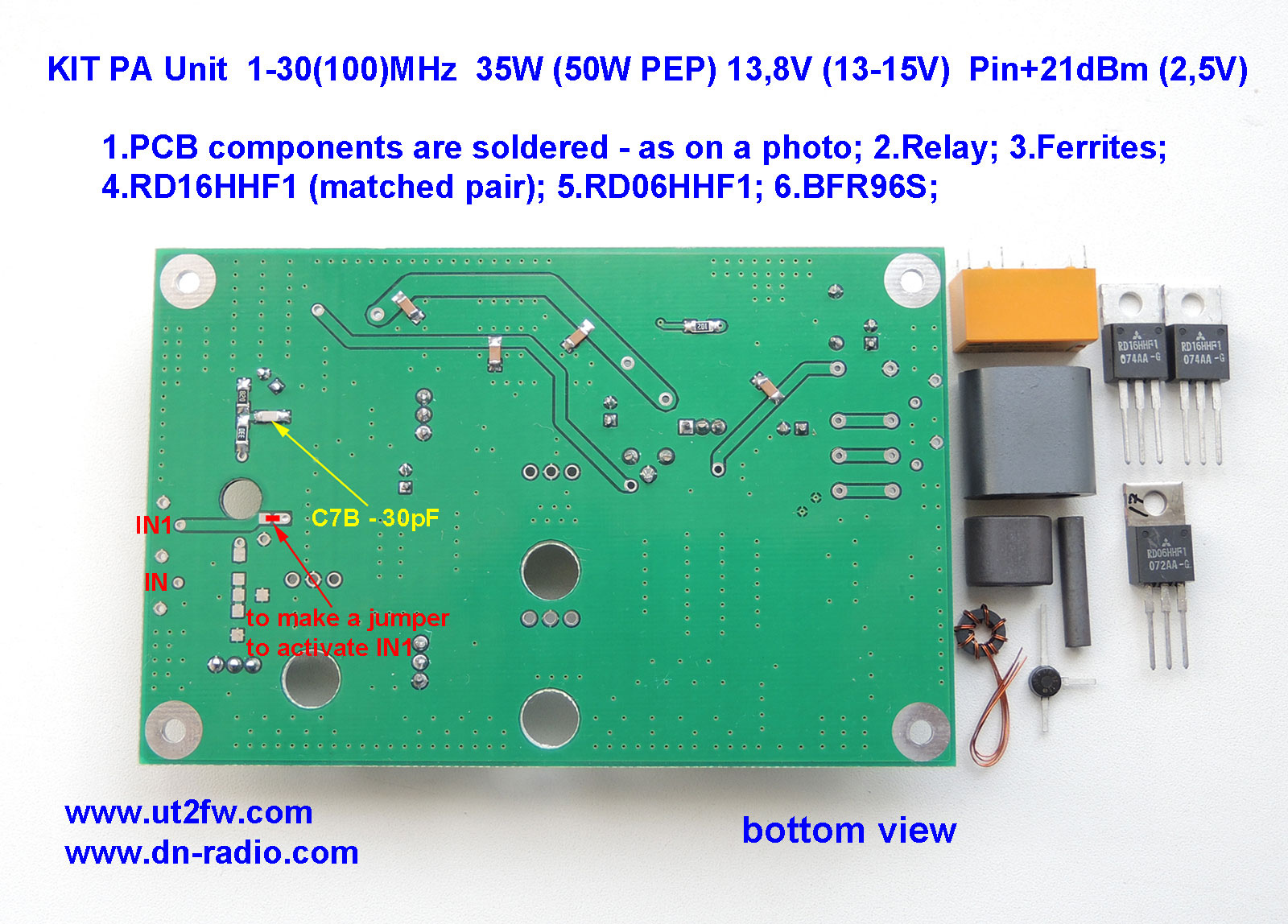

This set of PCBs KIT consists of parts:
1. PCB PA Unit - most of the components installed, see photos
2. Ferrites
3. Relay
4.RD16HHF1 - matched pair – 2pcs
5.RD06HHF1
6.BFR96S
By KIT is attached CD-disk with detailed description.
Detailed description of the amplifier can be viewed on the link =>http://www.ut2fw.com/node/443 Select the target language at the top right flags - GTranslate

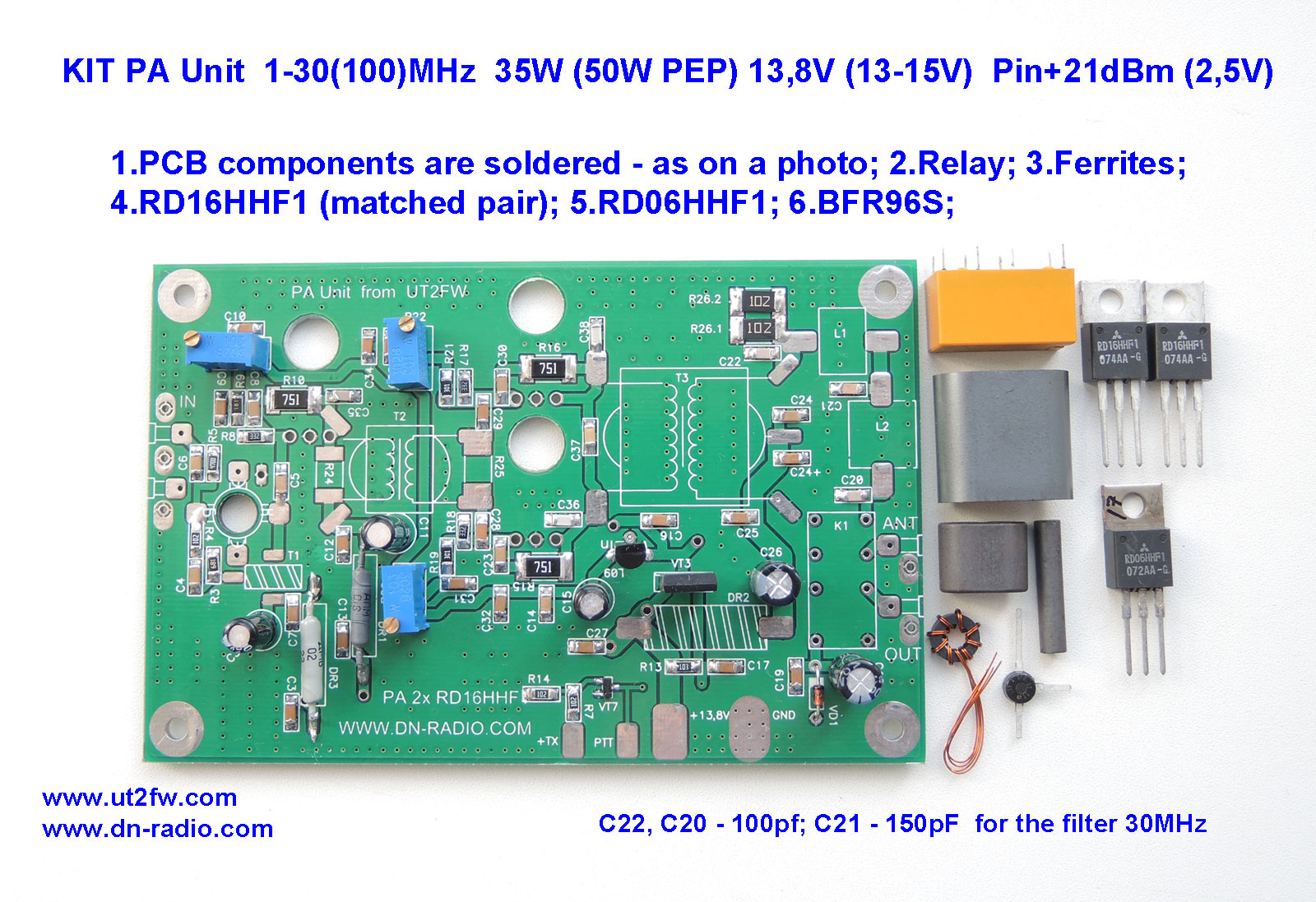

The board PA with the soldered details will look like this -
Additional schematic, photo -
