KIT RF Transformer TR-IN ferrite 43

9.00 $

Description:

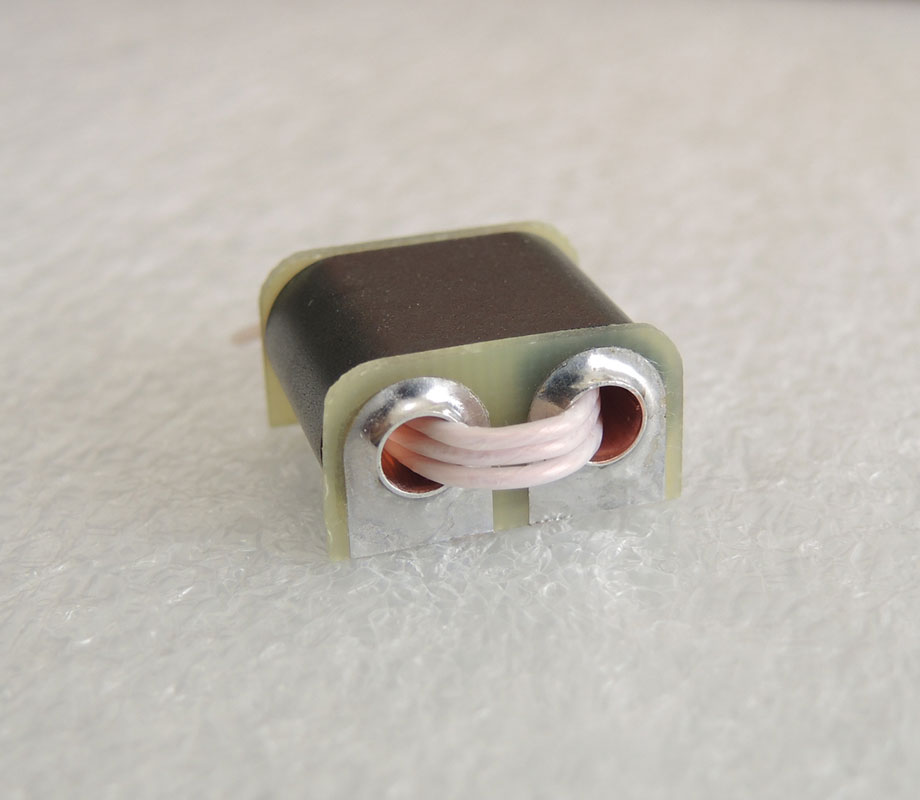

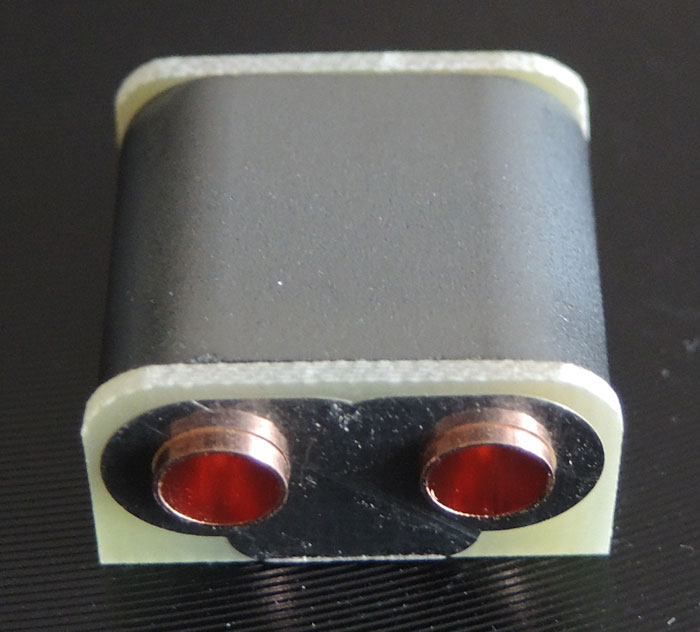

KIT RF T-in TRANSFORMER is intended for input, interstage impedance matching applications.

Note this is not the finished transformer. This is a KIT for the manufacture of the transformer.

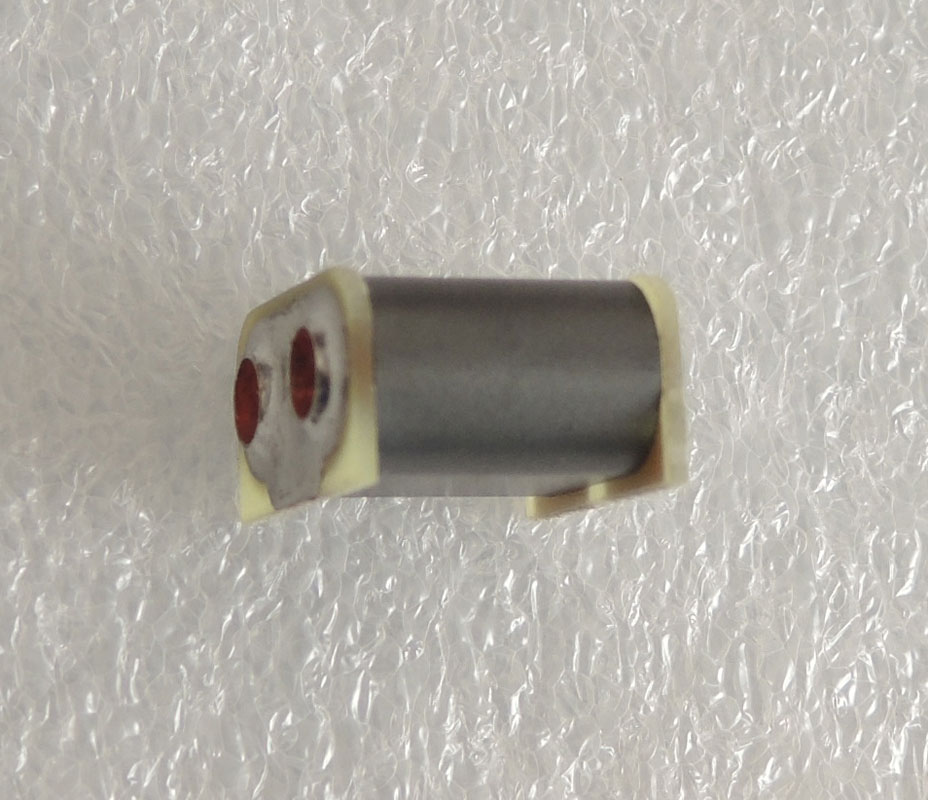

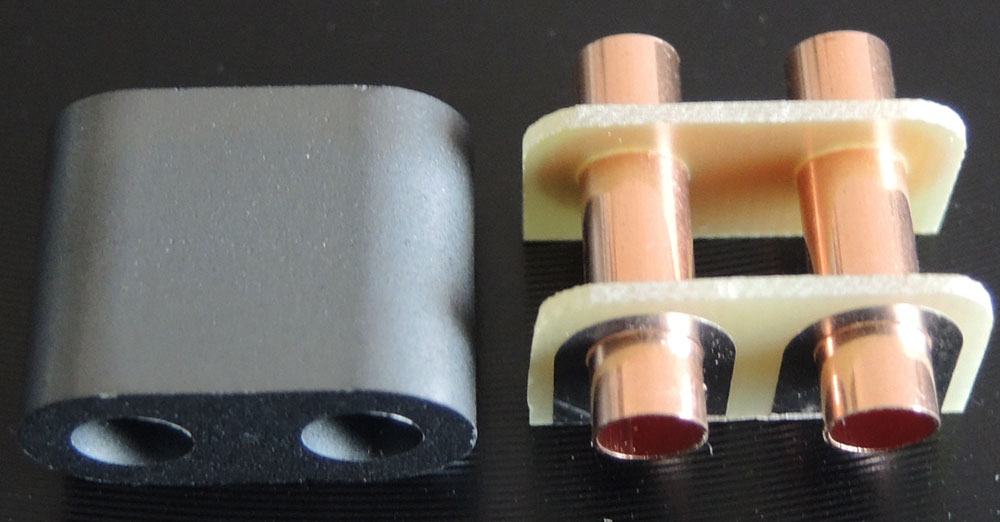

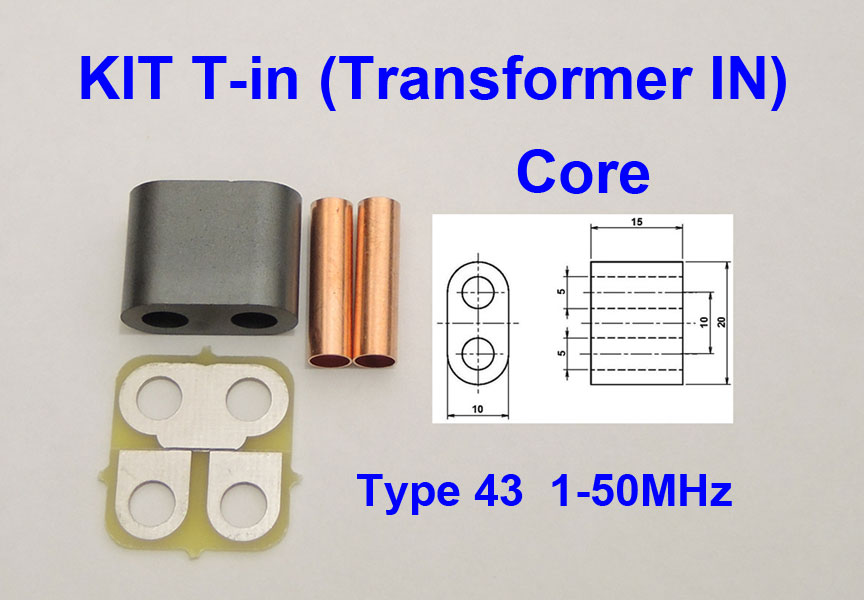

This KIT as you can see on the first photo. Wire not included.

Primarily in for solid-state, push-pull amplifiers.

The RF T-in transformer can handle a maximum power dissipation of 50 watts PEP.

Designed for PA with MOSFET, LDMOS - MRF150, SD2933, VRF2933, BLF188, BLF578, MRF6VP11KH, MRFE6VP61K25HR6...

The core material for the RF T-in transformer is available type 43.

TYPE 43  1-50MHz frequency range.

Attention, all detailed descriptions are given on the page => Description
