Description
Description:

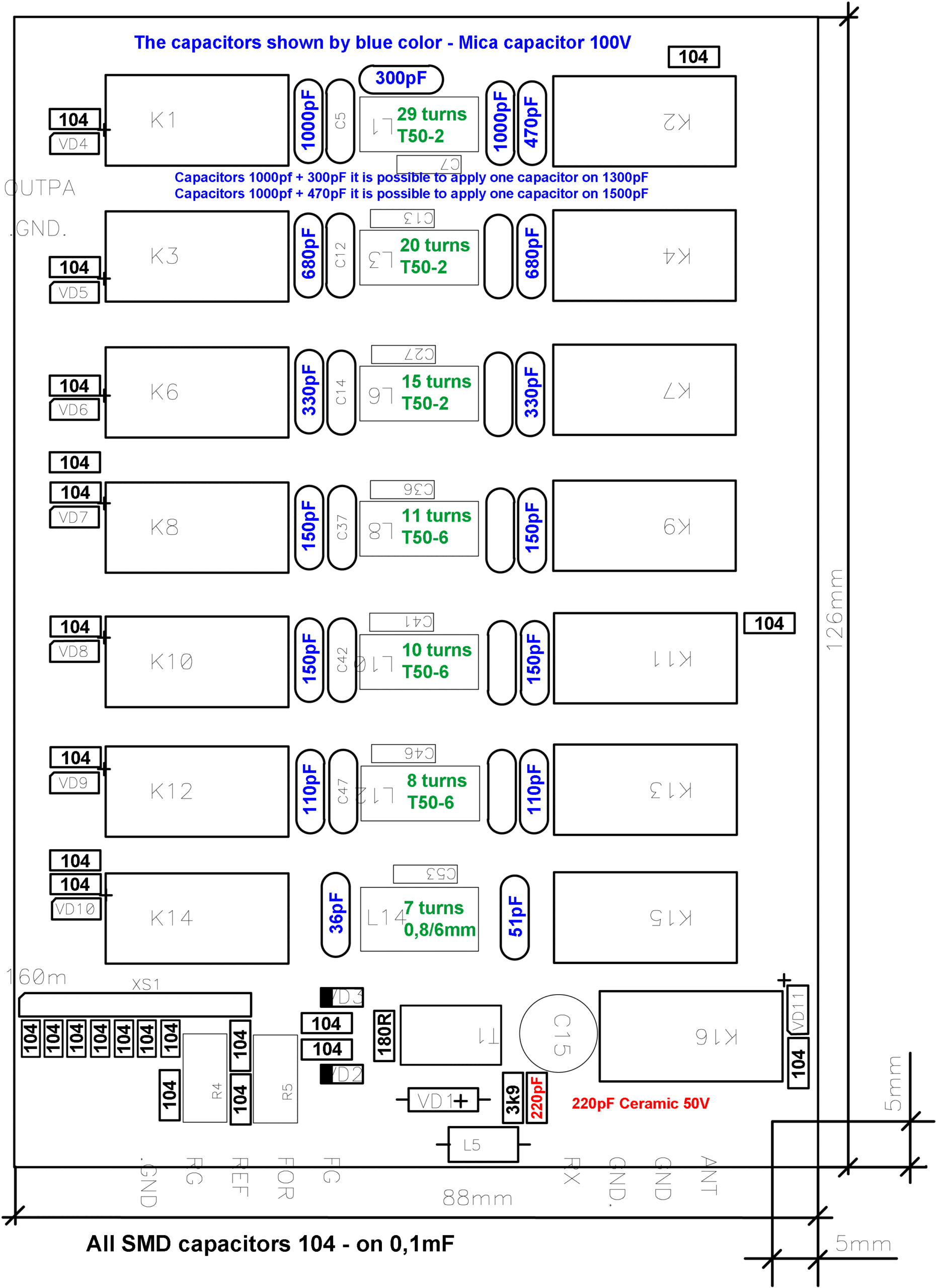

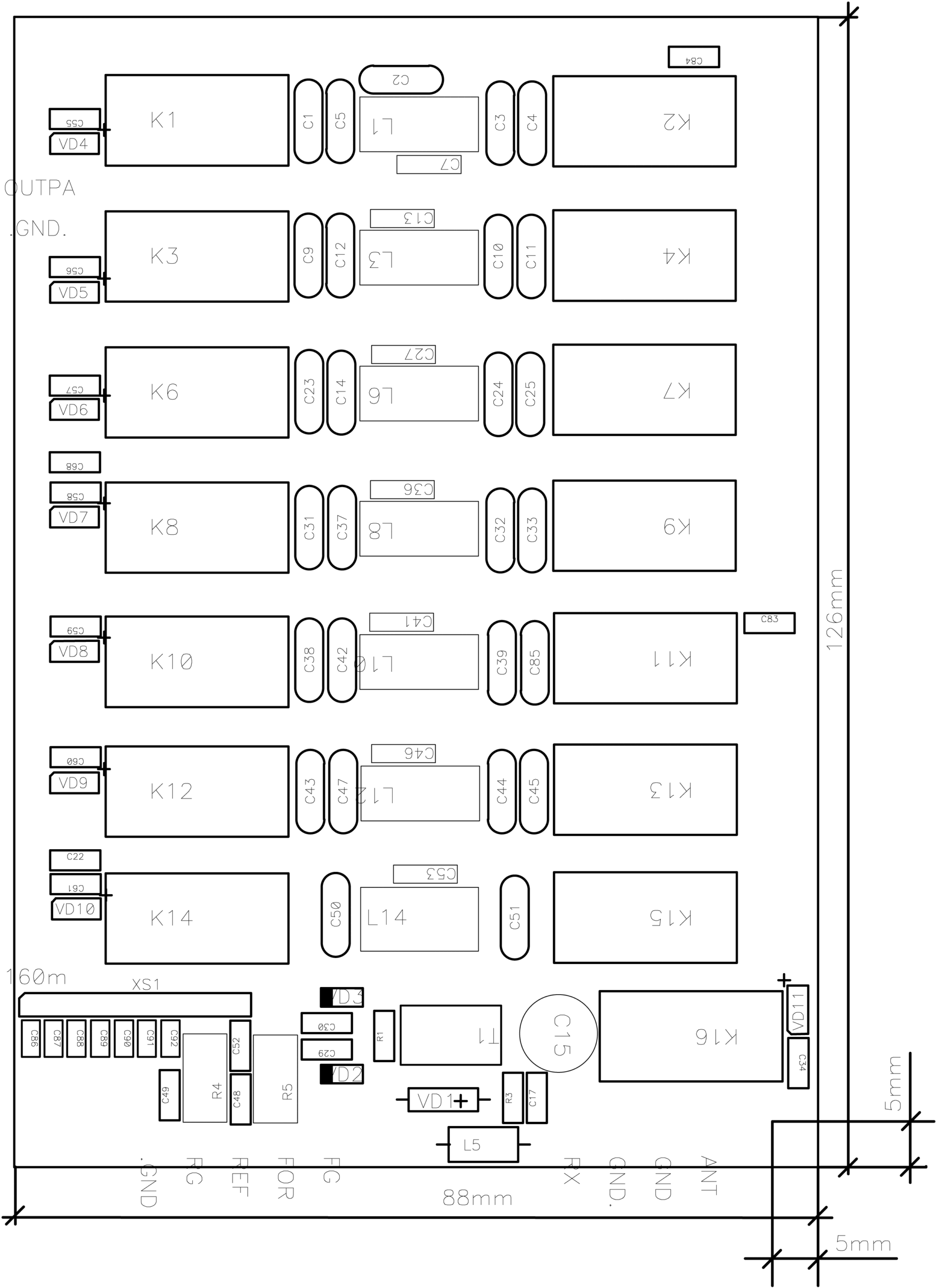

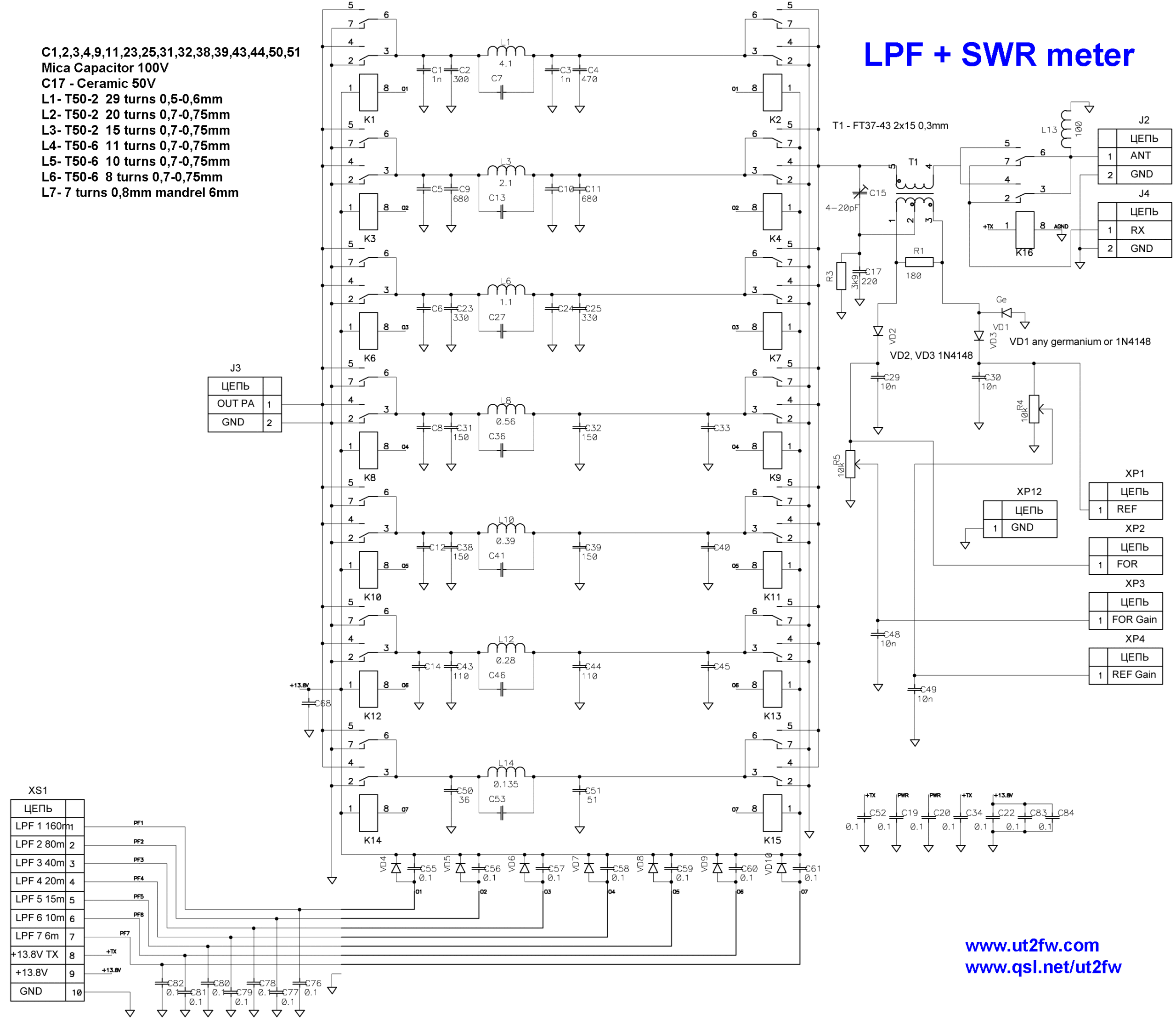

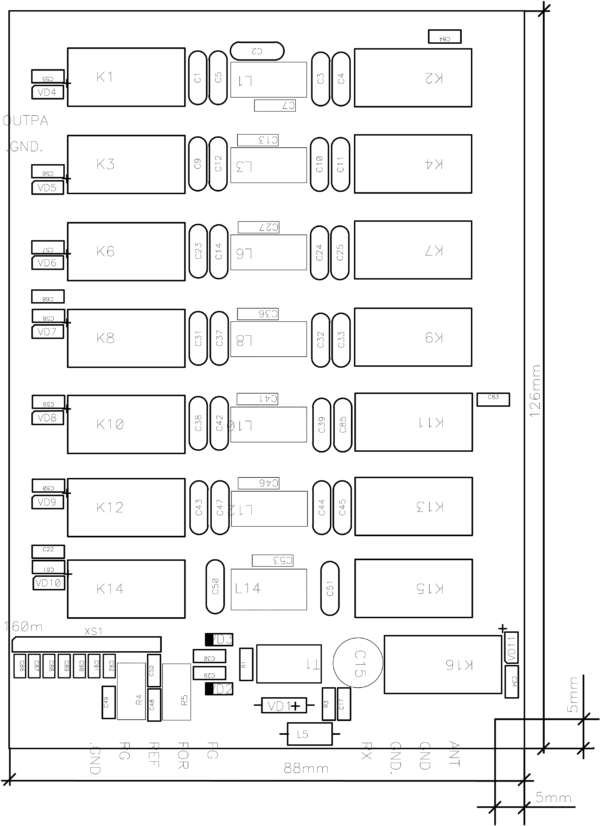

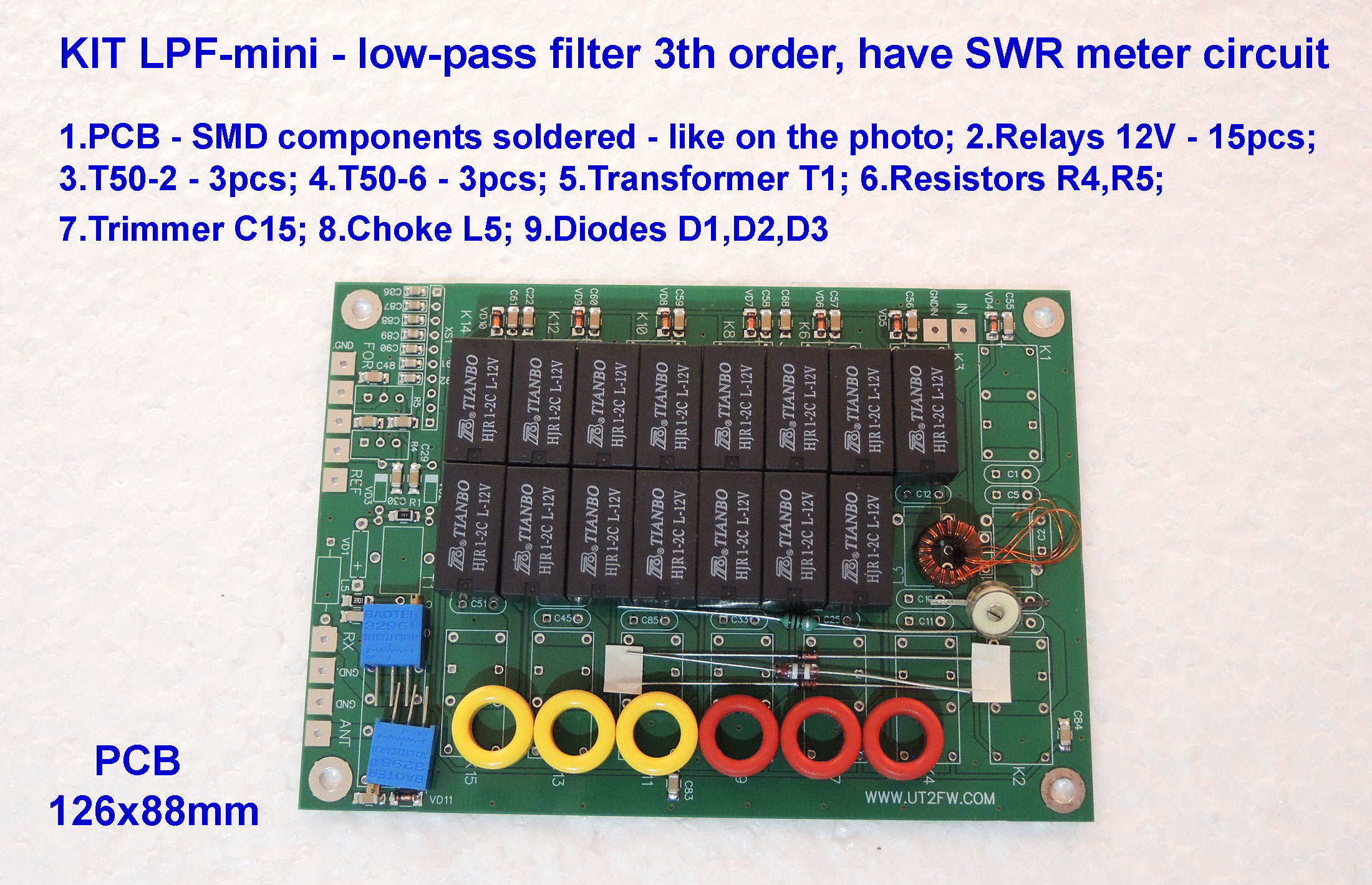

KIT LPF Unit KIT for 200W HF power amplifier:
1.PCBÂ double layer,
2.Relay-15pcs,
3.T50-2 – 3pcs,
4.T50-6 – 3pcs,
5.Transformer T1,
6.Resistors R5, R4,
7.Choke L5,
8.Diodes D1, D2, D3,
9.Capacitor C15,
Detailed description on link  => http://www.qsl.net/ut2fw or http://ut2fw.com/node/443
